DIESEL

D1105-K-E4

D1105-K-E4

Rated Power (kW): 18.5
Speed (rpm): 3000
Emission: EPA Tier 4, CARB Tier 4, EU Stage V, China IV
Kubota 05 Series

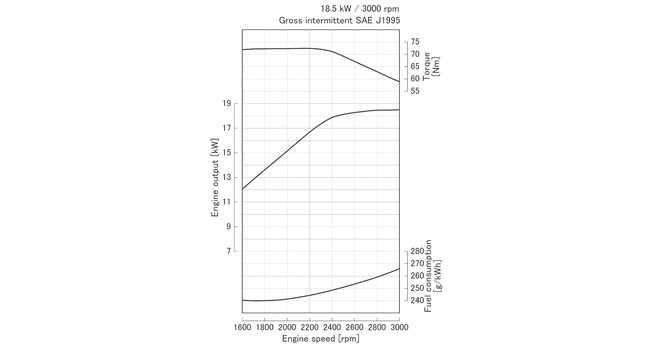

Performance Curves

D1105-K-E4

Features

Engine Model	D1105-K-E4
Emission Regulation	EPA/CARB Tier4 + EU Stage V + China Non-Road IV
Type	Vertical, water cooled 4-cycle IDI diesel engine
Cylinders	3
Bore and Stroke mm (in)	78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in.)	1.123 (68.53)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	18.5 (24.8) / 3000
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	72.4 (53.4) / 2200
Combustion System	TVCR
Fuel System	TVCR
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	481 x 385 x 595(19.0 x 15.2 x 23.4)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	94 (207)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Included ECU, excluded cooling fan

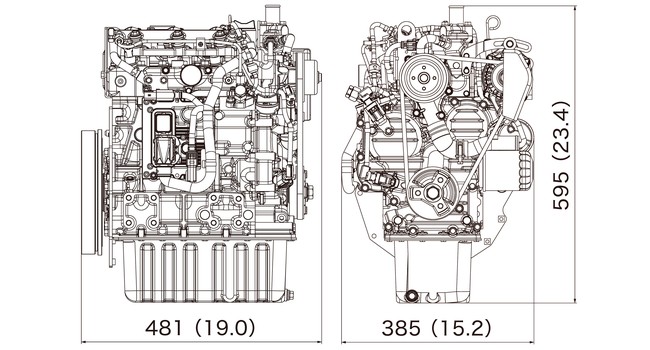

Dimensions

D1105-K-E4
