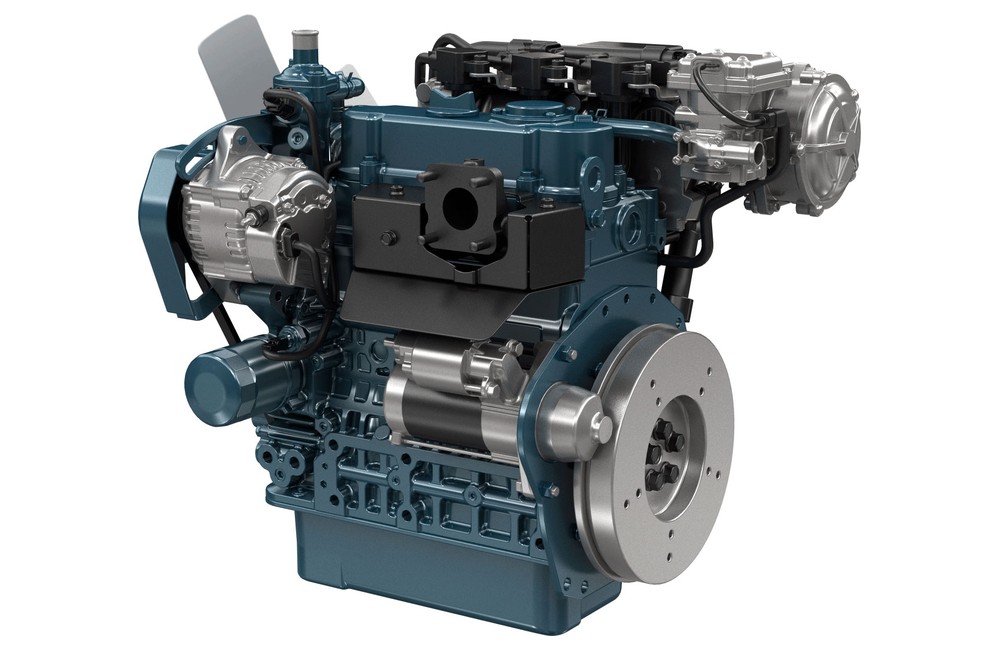

| Engine Model |
WG972-M-GL-E4 |
| Emission Regulation |
EPA Tier 4/CARB Tier 4 + EU Stage V |
| Type |
Vertical, water cooled 4-cycle spark ignited engine |
| Fuel |
Gasoline |
| Cylinders |
3 |
Bore and Stroke mm (in) |
74.5 x 73.6 (2.93 x 2.90) |
Displacement L (cu.in.) |
0.962 (58.7) |
| Aspiration |
Naturally aspirated |
| Aftertreatment |
Three-way catalyst |

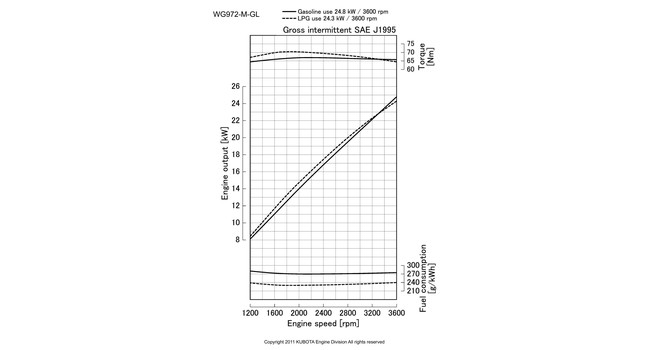

Rated Output / Speed*1 kW (HP) / rpm |
24.8 (33.3) / 3600 |
Maximum Torque*1 Nm (lb-ft) / rpm |
66.9 (49.3) / 2000 |

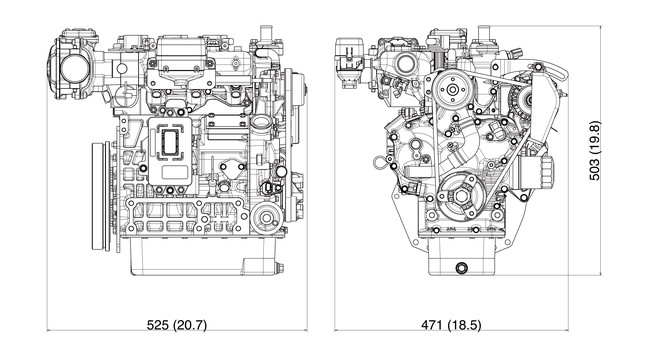

Length x Width x Height*2 mm (in) |
525 x 471 x 503 (20.7 x 18.5 x 19.8) |
Dry Weight*2 kg (lb) |
77.3 (170) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Propane is more than 30%, Butane is less than 70% recommended.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 49300 kJ/kg (11800 kcal/kg)
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan, aftertreatment unit
