V3600-T-E3B - Altınboğa

DIESEL

V3600-T-E3B

Rated Power (kW): 63.0
Speed (rpm): 2600
Emission: EPA Tier 3, CARB Tier 3, EU Stage IIIA
Kubota V3 Series

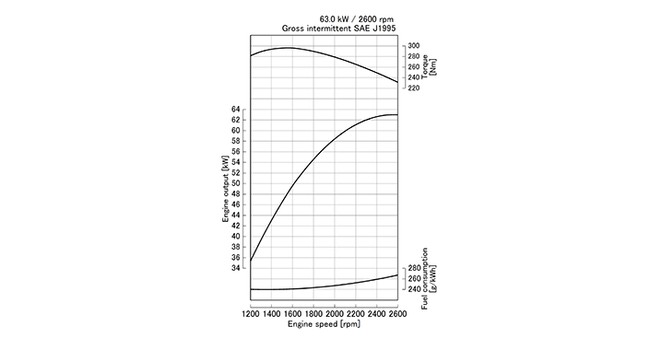

Performance Curves

Features

Engine Model	V3600-T-E3B
Emission Regulation	EPA/CARB Tier 3 + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	98.0 x 120.0 (3.86 x 4.724)
Displacement L (cu.in.)	3.620 (220.9)
Aspiration	Turbocharged
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	63.0 (84.5) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	296.0 (218.0) / 1600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 537 x 794 (27.5 x 21.1 x 31.3)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	261 (575)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

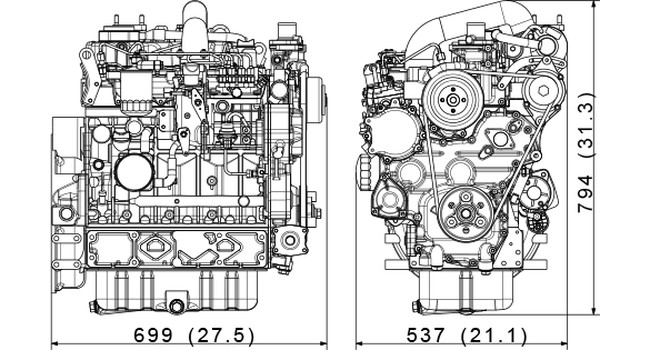

Dimensions
