V2003-M-DI-T-E2B - Altınboğa

DIESEL

V2003-M-DI-T-E2B

Rated Power (kW): 44.0
Speed (rpm): 2800
Emission: EPA Tier 2, CARB Tier 2, EU Stage II
Kubota 03 Series

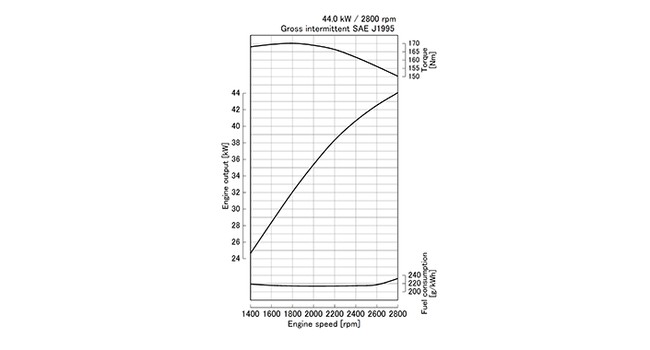

Performance Curves

Features

Engine Model	V2003-M-DI-T-E2B
Emission Regulation	EPA/CARB Tier 2 level + EU Stage II level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	83.0 x 92.4 (3.27 x 3.64)
Displacement L (cu.in.)	1.999 (122.0)
Aspiration	Turbocharged
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	44.0 (59.0) / 2800
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	169.6 (125.1) / 1800
Combustion System	Direct injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	642 x 495 x 704 (25.3 x 19.5 x 27.7)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	186 (410)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

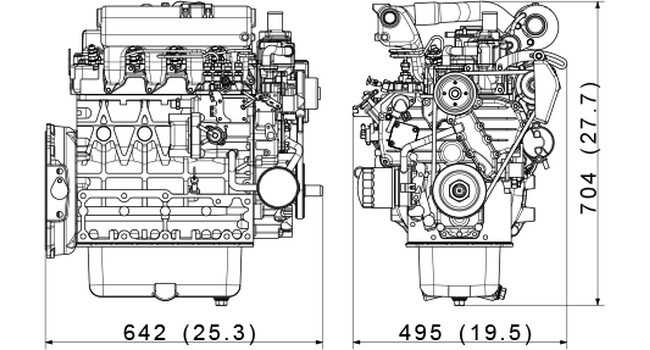

Dimensions
