DIESEL

V3800DI-T-E2B

Rated Power (kW): 72.8
Speed (rpm): 2600
Emission: EPA Tier 2, CARB Tier 2, EU Stage II
Kubota V3 Series

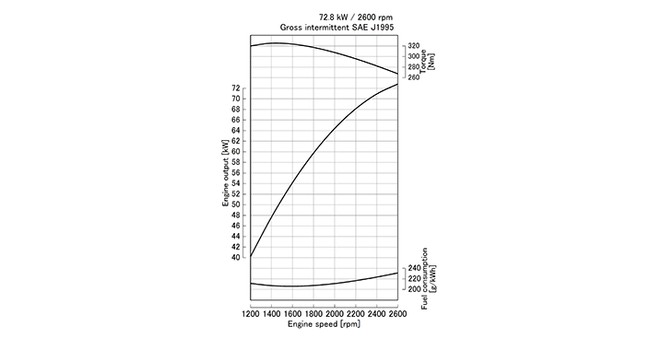

Performance Curves

Features

Engine Model	V3800DI-T-E2B
Emission Regulation	EPA/CARB Tier 2 level + EU Stage II level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 x 120.0 (3.937 x 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	72.8 (97.6) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	325.0 (239.7) / 1500
Combustion System	Direct injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 544 x 793 (27.5 x 21.4 x 31.2)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	267 (589)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

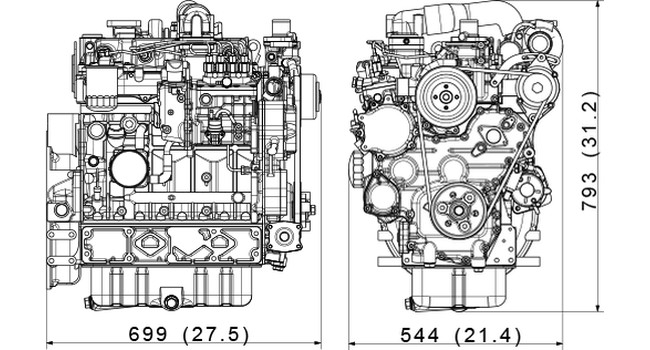

Dimensions
