V2607-CR-T-E4B - Altınboğa

DIESEL

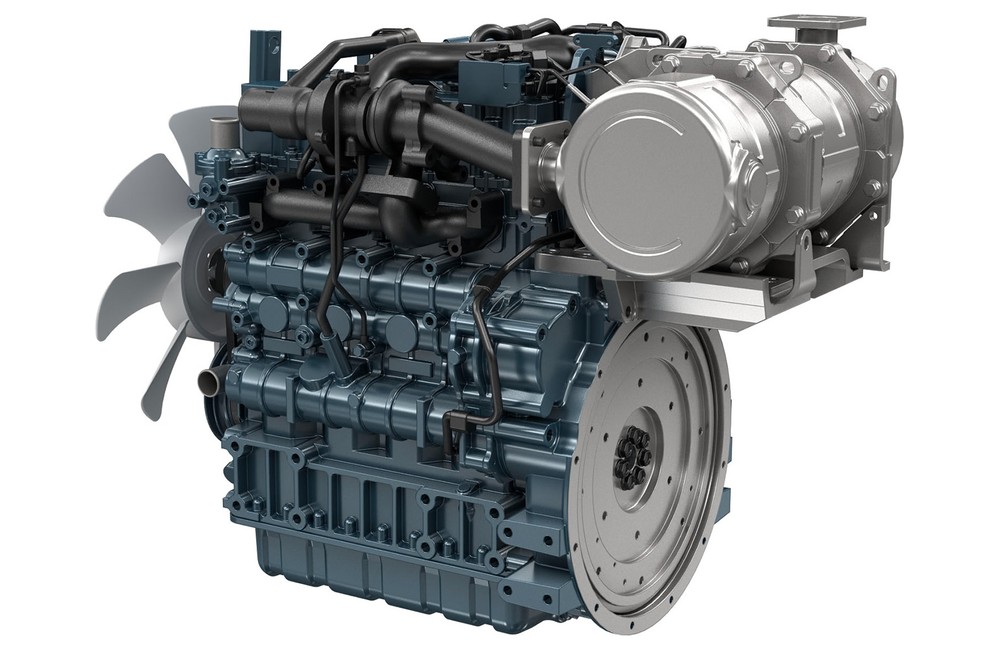

V2607-CR-T-E4B

Rated Power (kW): 53.0
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIB
Kubota 07 Series

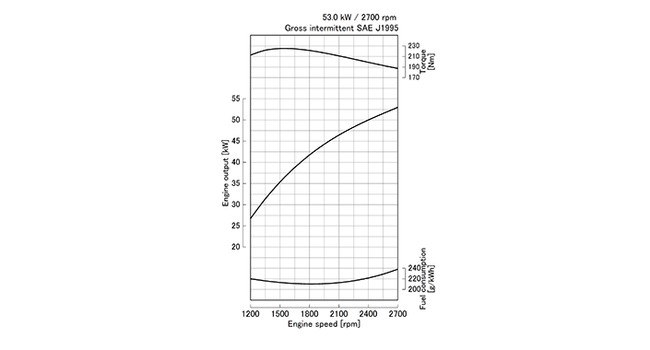

Performance Curves

Features

Engine Model	V2607-CR-T-E4B
Emission Regulation	EPA/CARB Tier 4 + EU Stage IIIB
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 110.0 (3.43 x 4.331)
Displacement L (cu.in.)	2.615 (159.6)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	53.0 (71.1) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	225.0 (166.0) / 1600
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	623 x 522 x 701 (24.5 x 20.6 x 27.6)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	833 x 522 x 723 (32.8 x 20.6 x 28.5)
Dry Weight kg (lb)	272 (600)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

DPF: Diesel Particulate Filter

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

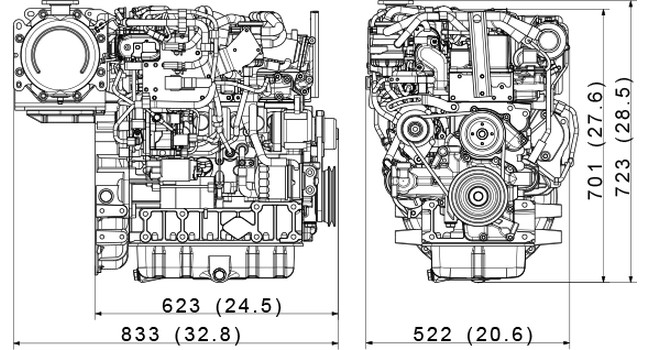

Dimensions
