V2607-DI-T-E3B - Altınboğa

DIESEL

V2607-DI-T-E3B

Rated Power (kW): 49.2
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIA
Kubota 07 Series

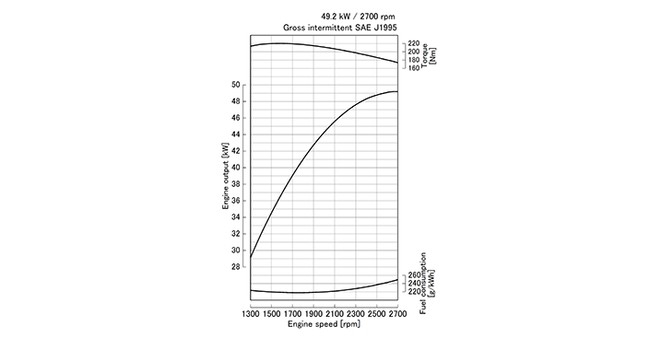

Performance Curves

Features

Engine Model	V2607-DI-T-E3B
Emission Regulation	EPA/CARB interim Tier 4 + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 110.0 (3.43 x 4.331)
Displacement L (cu.in.)	2.615 (159.6)
Aspiration	Turbocharged
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	49.2 (66.0) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	220.3 (162.5) / 1600
Combustion System	Direct Injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	623 x 481 x 682 (24.5 x 18.9 x 26.9)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	235 (518)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

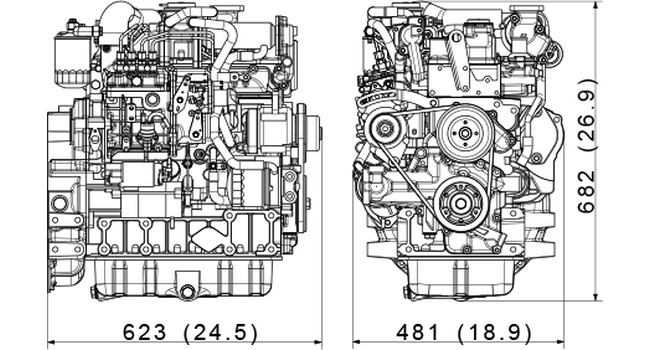

Dimensions
