DIESEL

V3307-TE5A

V3307-TE5A

Rated Power (kW): 55.4
Speed (rpm): 2600
Emission: EPA Tier 4, CARB Tier 4, EU Stage V, China IV
Kubota 07 Series

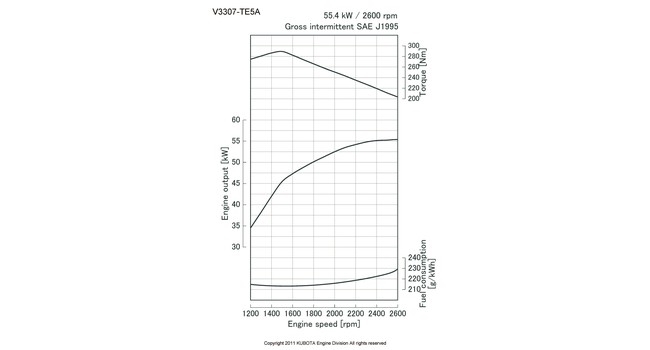

Performance Curves

V3307-TE5A

Features

Engine Model	V3307-TE5A
Emission Regulation	EPA/CARB Tier4 + EU Stage V + China NR IV
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	94.0 x 120.0 (3.70 x 4.724)
Displacement L (cu.in.)	3.331 (203.3)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	55.4 (74.3) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	289.3 (213.4) / 1500
Combustion System	Direct Injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	-
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	859 x 561 x 749 (33.8 x 22.1 x 29.5)
Dry Weight kg (lb)	305 (672)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit

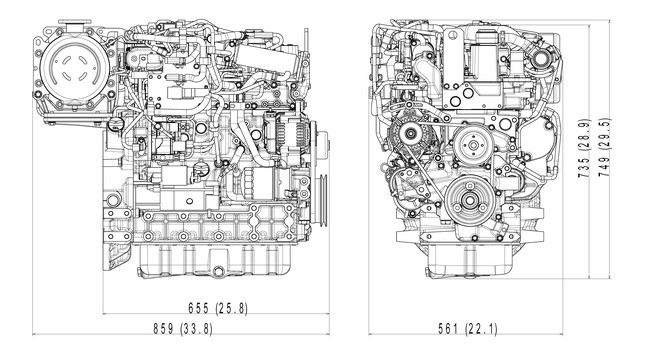

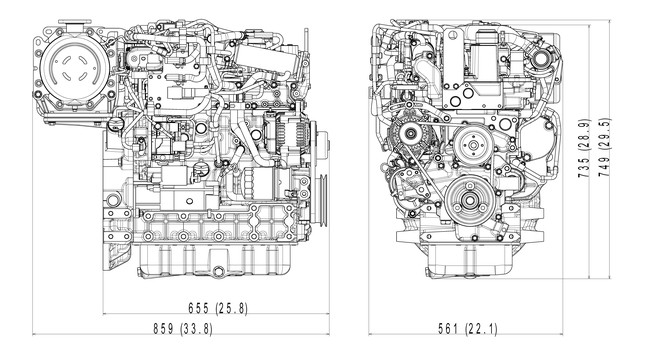

Dimensions

V3307-TE5A
