Z482
Home Industrial Engines Z482

Z482

DIESEL
Z482
Z482
Z482
Z482
  • Rated Power (kW): 4.4
  • Speed (rpm): 1800
  • Kubota BG Series
Contact Us
Features

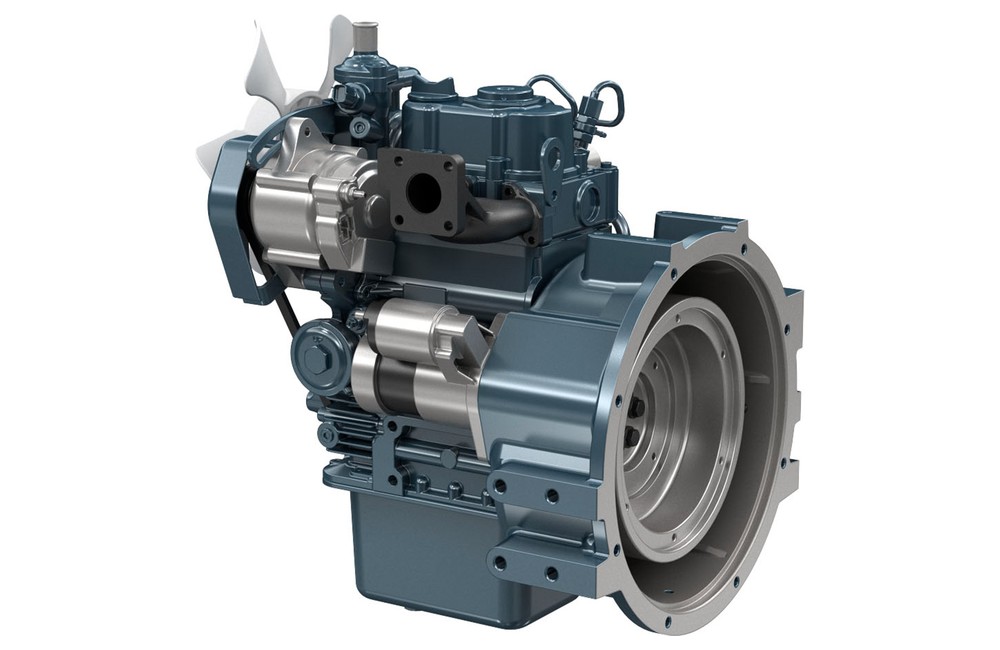

Engine Model Z482
Emission Regulation -
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 2
Bore and Stroke
mm (in)		 67.0 x 68.0 (2.64 x 2.68)
Displacement
L (cu.in.)		 0.479 (29.23)
Aspiration Naturally aspirated
Aftertreatment -
Stand-by output / speed*1
kW (HP) / rpm		 4.4 (5.9) / 1800
Continuous output / speed*2
kW (HP) / rpm		 4.1 (5.5) / 1800
Combustion System Indirect injection
Fuel System In-line pump

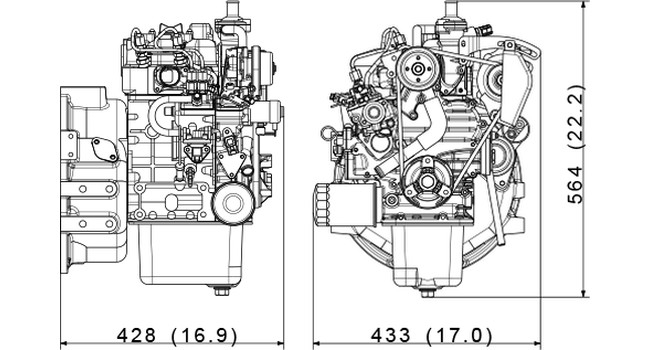

Length x Width x Height*3
(Without Aftertreatment Unit)
mm (in)		 428 x 433 x 564 (16.9 x 17.0 x 22.2)
Length x Width x Height*4
(With Aftertreatment Unit)
mm (in)		 -
Dry Weight
kg (lb)		 81 (179)


Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.



*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
