V2403-CR-E5 - Altınboğa | Albo Marin

DIESEL

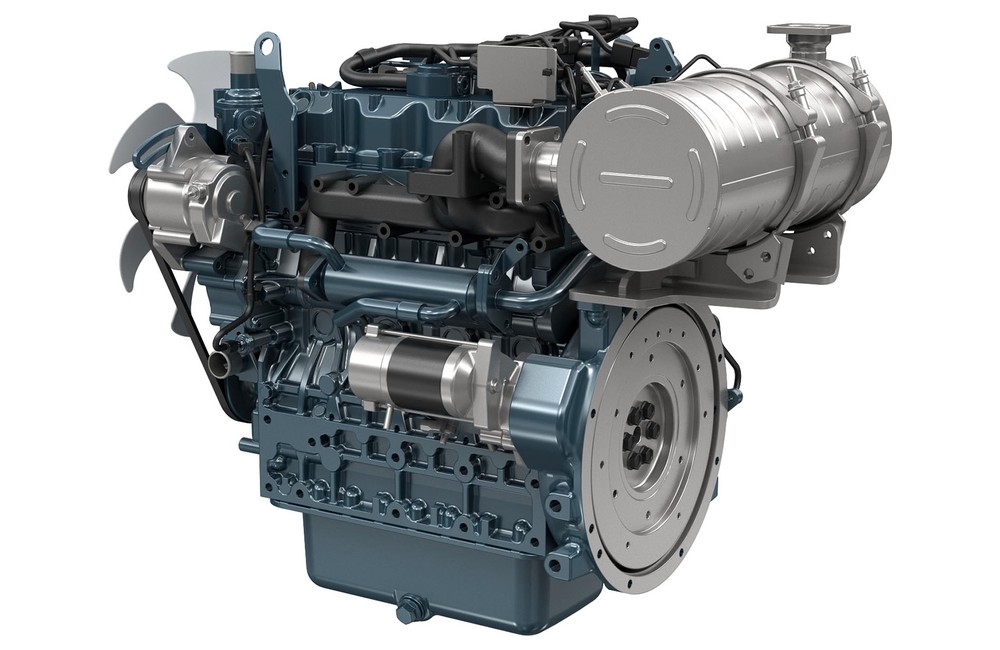

V2403-CR-E5

V2403-CR-E5

Rated Power (kW): 37.4
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage V
Kubota 03 Series

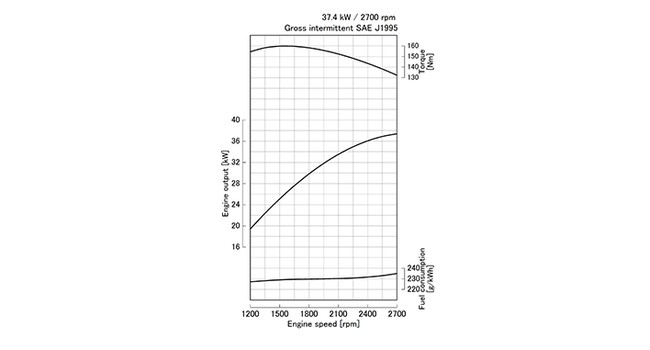

Performance Curves

V2403-CR-E5

Features

Engine Model	V2403-CR-E5
Emission Regulation	EPA/CARB Tier4 + EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	2.434 (148.5)
Aspiration	Naturally Aspirated
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	37.4 (50.2) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	159.8 (117.9) / 1600
Combustion System	Direct Injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	646 x 540 x 711 (25.4 x 21.3 x 28.0)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	842 x 540 x 727 (33.1 x 21.3 x 28.6)
Dry Weight kg (lb)	221 (487)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit

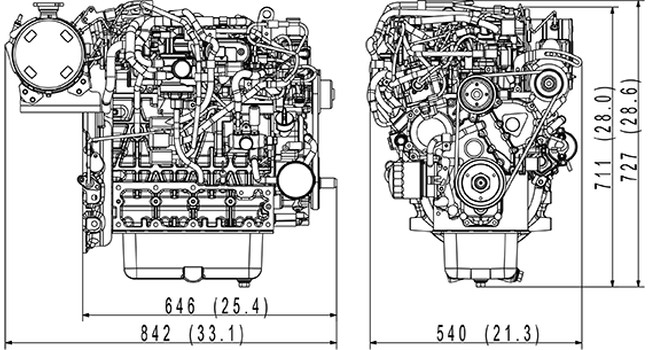

Dimensions

V2403-CR-E5
