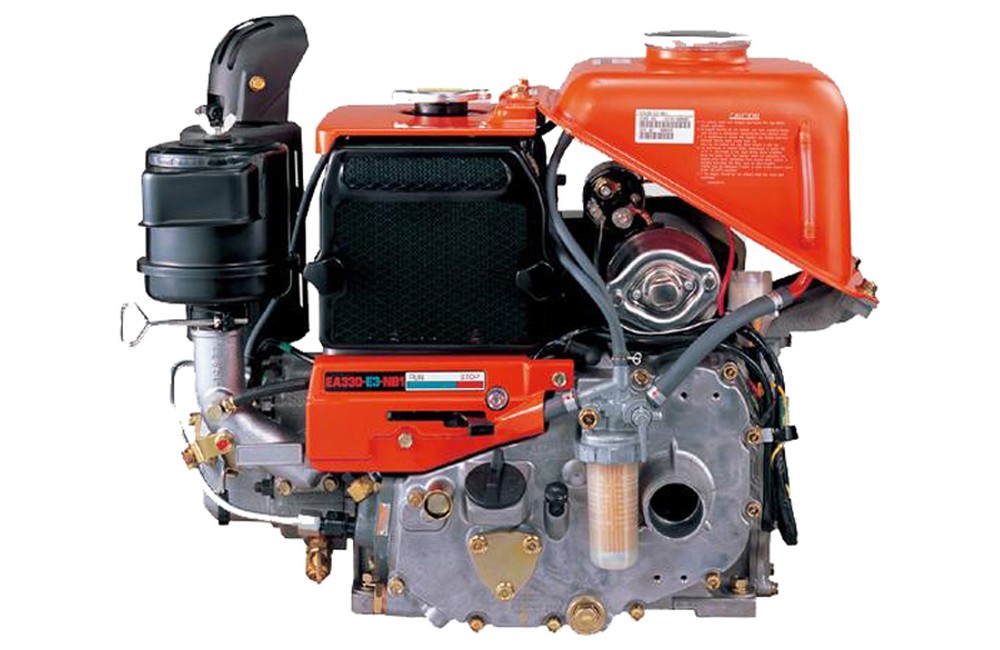

EA330-E3 - Altınboğa | Albo Marin

DIESEL

EA330-E3

EA330-E3

Rated Power (kW): 5.15
Speed (rpm): 3000
Emission: EPA Tier 4, CARB Tier 4
Kubota EA Series

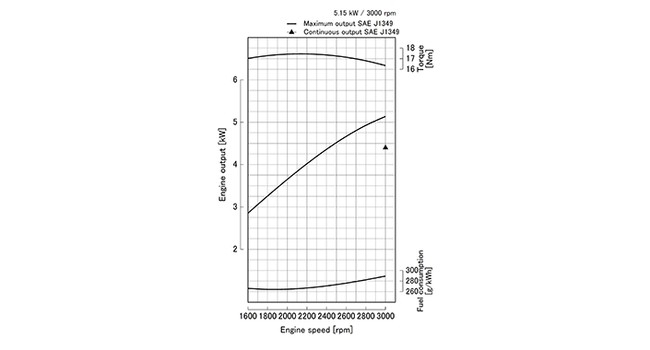

Performance Curves

EA330-E3

Features

Engine Model	EA330-E3
Emission Regulation	EPA/CARB Tier 4
Type	Horizontal, water cooled 4-cycle diesel engine
Cylinders	1
Bore and Stroke mm (in)	77.0 x 70.0 (3.03 x 2.76)
Displacement L (cu.in.)	0.325 (19.8)
Maximum output / speed^*1 Nm (lb-ft) / rpm	5.15 (6.91) / 3000
Continuous output / speed^*1 kW (HP) / rpm	4.4 (5.9) / 3000
Maximum Torque / Speed Nm (lb-ft) / rpm	17.65 (13.02) / 2000
Combustion System	Indirect Injection
Fuel tank capacity L (U.S. gal)	4.8 (1.3)
Lubricating oil capacity L (U.S. gal)	1.3 (0.34)
Starter capacity V - kW	12 - 1.1
Charging dynamo V - W	12 - 60
Length x Width x Height mm (in)	312 x 566 x 457 (12.3 x 22.3 x 18.0)
Dry Weight^*2 kg (lb)	54 (120)

Specifications are subject to change without notice.

Dry weight is according to Kubota's standard specification.

When specification varies, the weight will vary accordingly.

*1: SAE J1349 net intermittent
*2: Three Vortex Combustion System(TVCS)

Dimensions

EA330-E3
