DIESEL

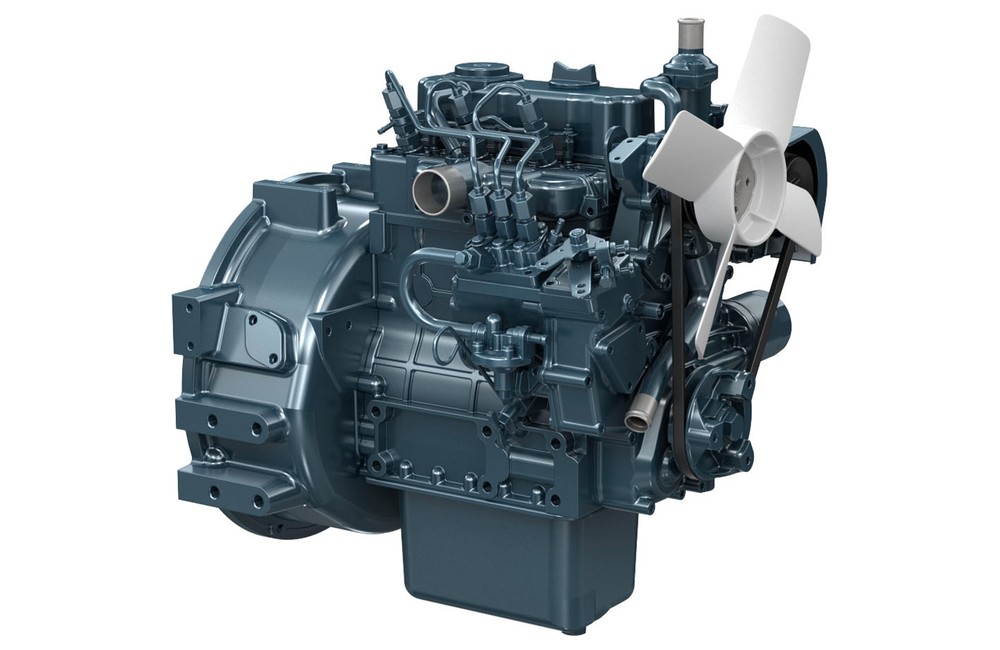

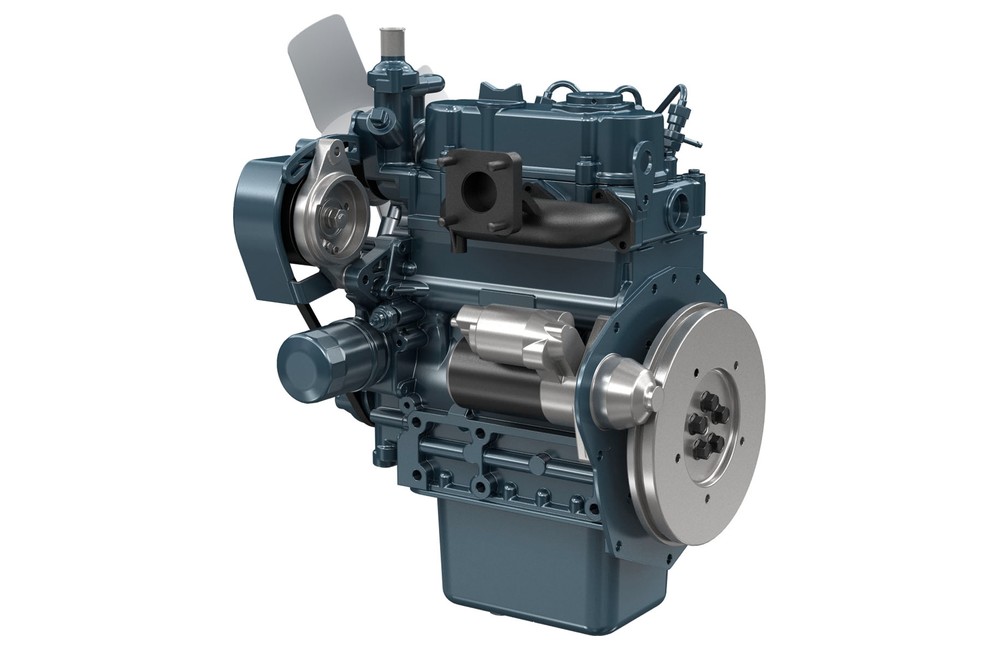

D722-E2B

Rated Power (kW): 14.9
Speed (rpm): 3600
Emission: EPA Tier 2, CARB Tier 2
Kubota Super Mini Series

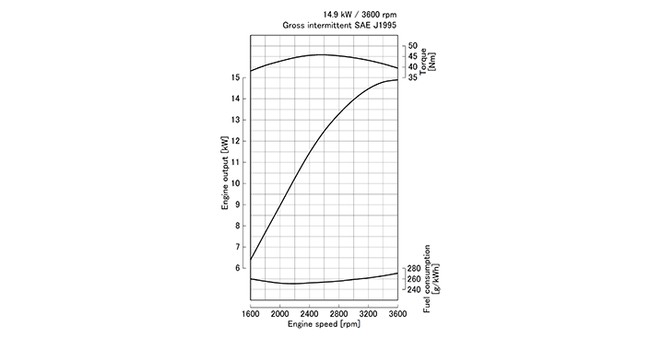

Performance Curves

Features

Engine Model	D722-E2B
Emission Regulation	EPA/CARB Tier 2 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	67.0 x 68.0 (2.64 x 2.68)
Displacement L (cu.in.)	0.719 (43.88)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	14.9 (20.0) / 3600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	45.8 (33.8) / 2600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	407 x 386 x 564 (16.0 x 15.2 x 22.2)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	63 (139)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

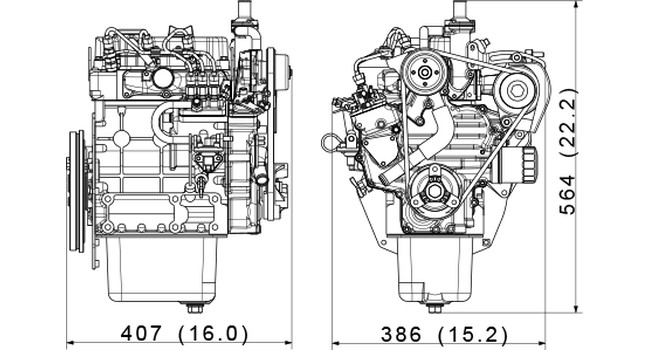

Dimensions
