| Engine Model |
WG3800-G-E3 |
| Emission Regulation |
EPA Tier 2/CARB Tier 3 |
| Type |
Vertical, water cooled 4-cycle spark ignited engine |
| Fuel |
Gasoline |
| Cylinders |
4 |
Bore and Stroke mm (in) |
100.0 x 120.0 (3.937 x 4.724) |
Displacement L (cu.in.) |
3.769 (230.0) |
| Aspiration |
Naturally aspirated |
| Aftertreatment |
Three-way catalyst |

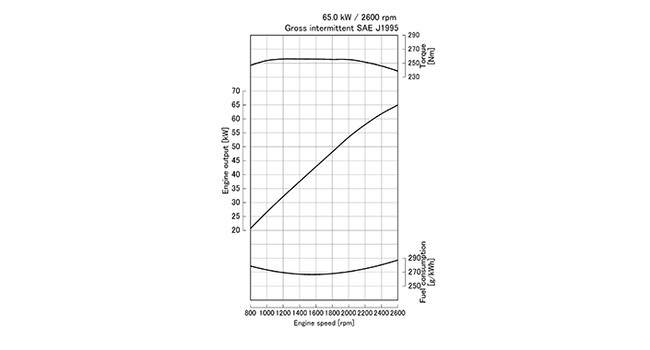

Rated Output / Speed*1 kW (HP) / rpm |
65.0 (87.1) / 2600 |
Maximum Torque / Speed Nm (lb-ft) / rpm |
256.0 (188.9) / 1400 |

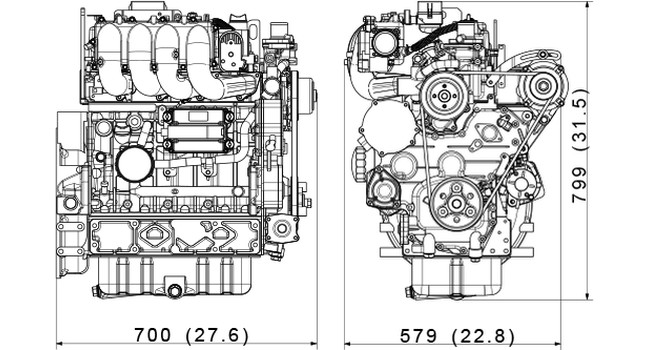

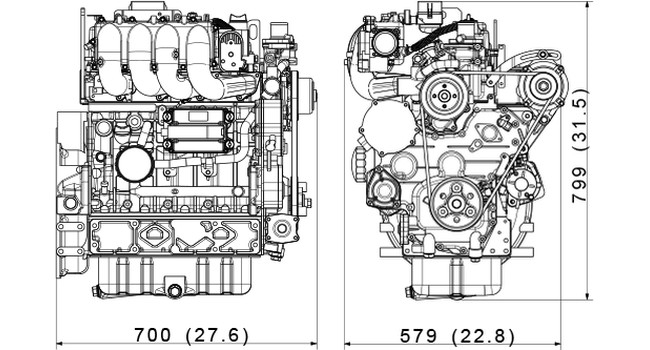

Length x Width x Height*1 mm (in) |
700 x 579 x 799 (27.6 x 22.8 x 31.5) |
Dry Weight*2 kg (lb) |
288 (635) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 9699 kcal/m3 (1090 BTU/ft3)
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
