DIESEL

V3800-TIE5

V3800-TIE5

Rated Power (kW): 86.4
Speed (rpm): 2600
Emission: EU Stage V
Kubota V3 Series

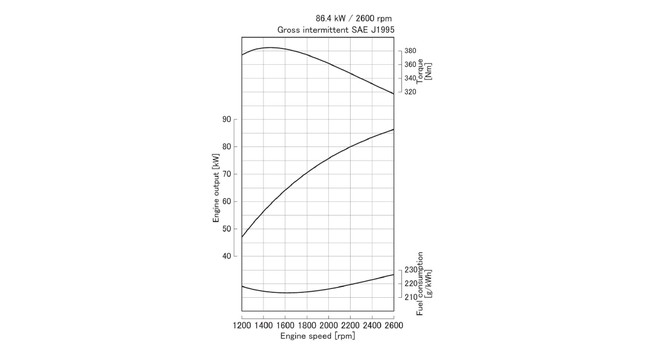

Performance Curves

V3800-TIE5

Features

Engine Model	V3800-TIE5
Emission Regulation	EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 × 120.0 (3.937 × 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC + DPF + SCR
Rated Output / Speed^*1 kW (HP) / rpm	86.4 (115.9) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	385.0 (284.0) / 1500
Combustion System	Direct Injection
Fuel System	Common Rail System
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	-
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	844 × 638 × 1191 (33.2 × 25.1 × 46.88)
Dry Weight kg (lb)	400 (882)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Included aftertreatment unit, excluded cooling fan

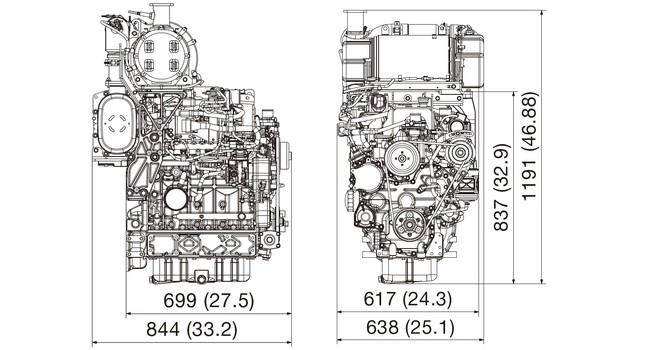

Dimensions

V3800-TIE5
