DIESEL

V5009-TI

V5009-TI

Rated Power (kW): 142.1
Speed (rpm): 2200
Kubota 09 Series

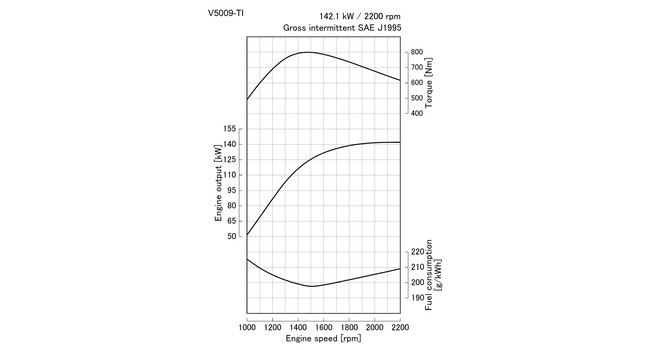

Performance Curves

V5009-TI

Features

Engine Model	V5009-TI
Emission Regulation	-
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	110.0 x 132.0 (4.331 x 5.197)
Displacement L (cu.in.)	5.017 (306.2)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	None
Rated Output / Speed^*1 kW (HP) / rpm	142.1 (190.6) / 2200
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	798.8 (589.2) / 1500
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	894 x 652 x 955 (35.2 x 25.7 x 37.6)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	633 (1396)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Excluded cooling fan

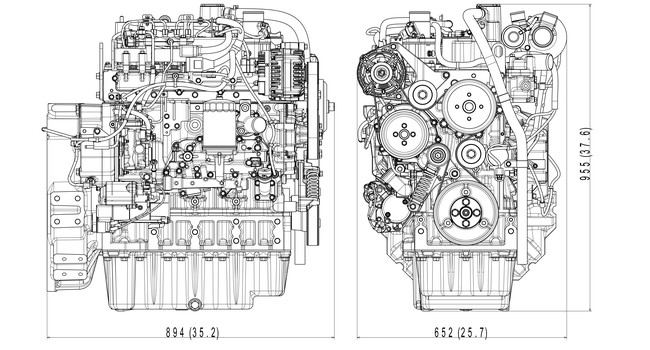

Dimensions

V5009-TI
