DIESEL

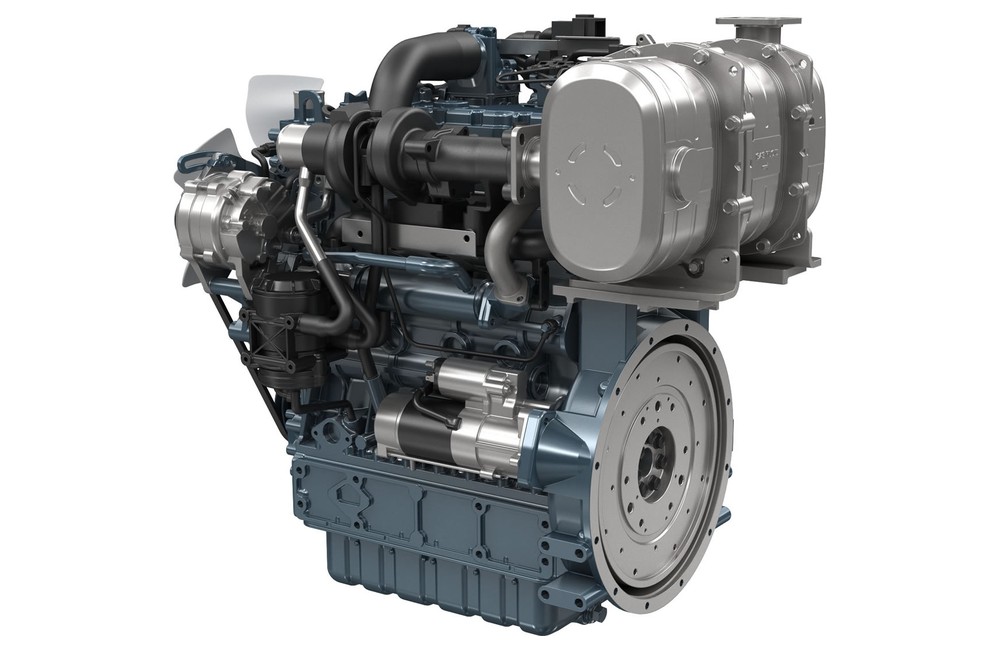

V3800-CR-T-E4B

Rated Power (kW): 74.5
Speed (rpm): 2600
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIB
Kubota V3 Series

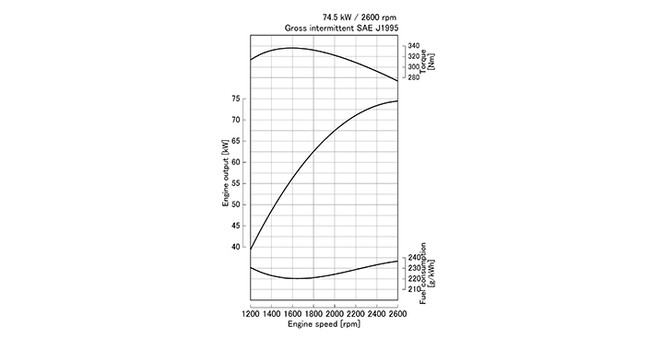

Performance Curves

Features

Engine Model	V3800-CR-T-E4B
Emission Regulation	EPA/CARB interim Tier 4 level + EU Stage IIIB level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 x 120.0 (3.937 x 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	74.5 (99.9) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	335.0 (247.1) / 1500
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 581 x 852 (27.5 x 22.9 x 33.5)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	845 x 581 x 852 (33.3 x 22.9 x 33.5)
Dry Weight kg (lb)	325 (717)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

DPF: Diesel Particulate Filter

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

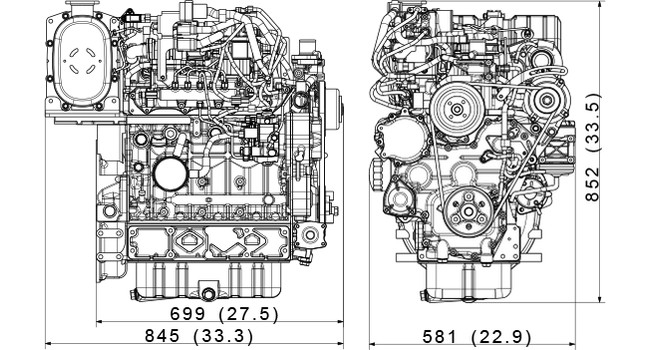

Dimensions
