DIESEL

V2607-TE5A

V2607-TE5A

Rated Power (kW): 55.4
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage V, China IV
Kubota 07 Series

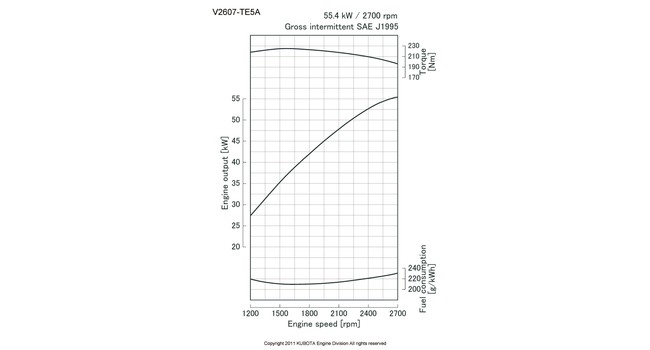

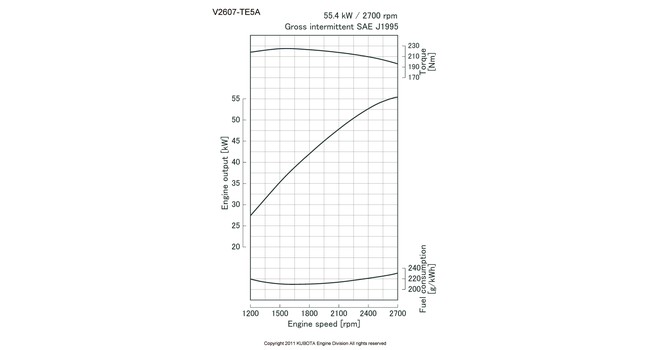

Performance Curves

V2607-TE5A

Features

Engine Model	V2607-TE5A
Emission Regulation	EPA/CARB Tier4 + EU Stage V + China NR IV
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 110.0 (3.43 x 4.331)
Displacement L (cu.in.)	2.615 (159.6)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	55.4 (74.3) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	225.0 (166.0) / 1600
Combustion System	Direct Injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	-
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	835 x 523 x 723 (32.9 x 20.6 x 28.5)
Dry Weight kg (lb)	272 (600)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit

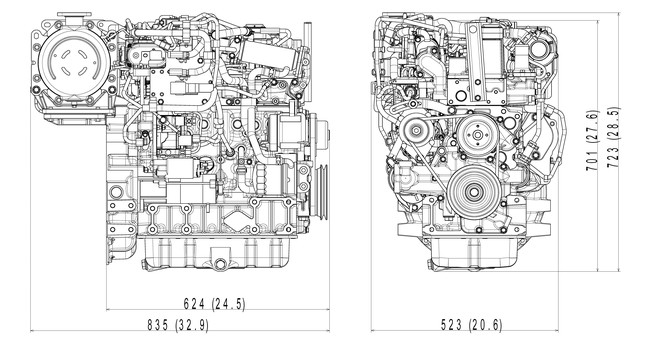

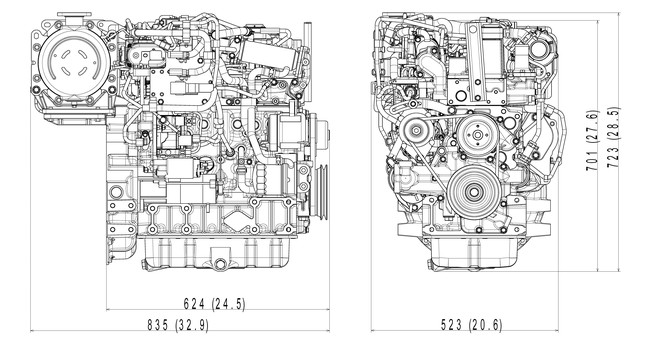

Dimensions

V2607-TE5A
