| Engine Model |
WG1903-GL |
| Emission Regulation |
EPA Tier 2/CARB Tier 3 + EU Stage V |
| Type |
Vertical, water cooled 4-cycle spark ignited engine |
| Fuel |
LPG |
| Cylinders |
3 |
Bore and Stroke mm (in) |
88.0×102.4 (3.465×4.031) |
Displacement L (cu.in.) |
1.868 (114.0) |
| Aspiration |
Naturally aspirated |
| Aftertreatment |
Three-way catalyst |

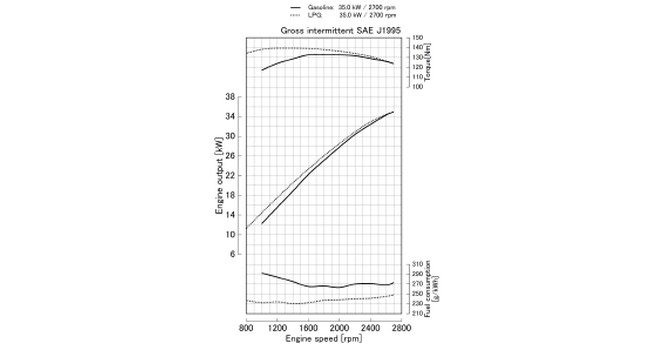

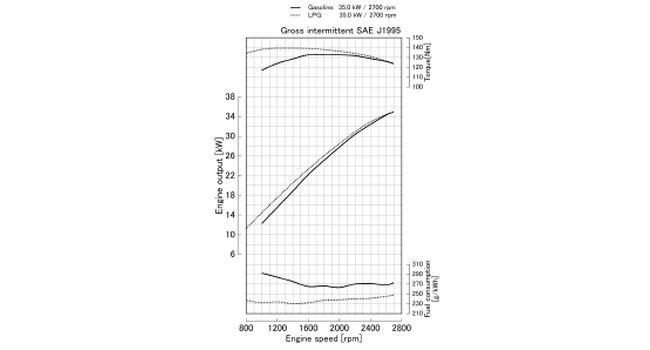

Rated Output / Speed*1 kW (HP) / rpm |
35.0 (46.9) / 2700 |
Maximum Torque / Speed Nm (lb-ft) / rpm |
140 (103) / 1400 |

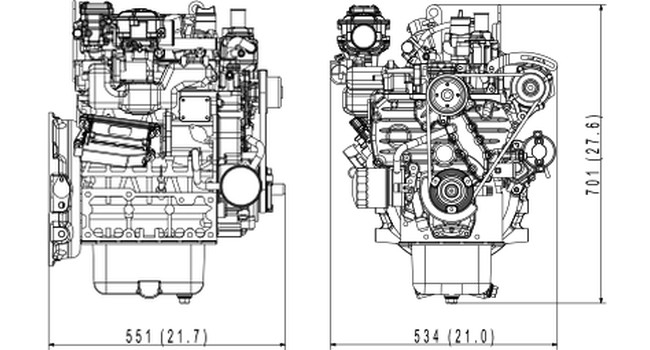

Length x Width x Height*1 mm (in) |
551 × 534 × 701 (21.7 × 21.0 × 27.6) |
Dry Weight*2 kg (lb) |
167 (368) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 9699 kcal/m3 (1090 BTU/ft3)
*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
