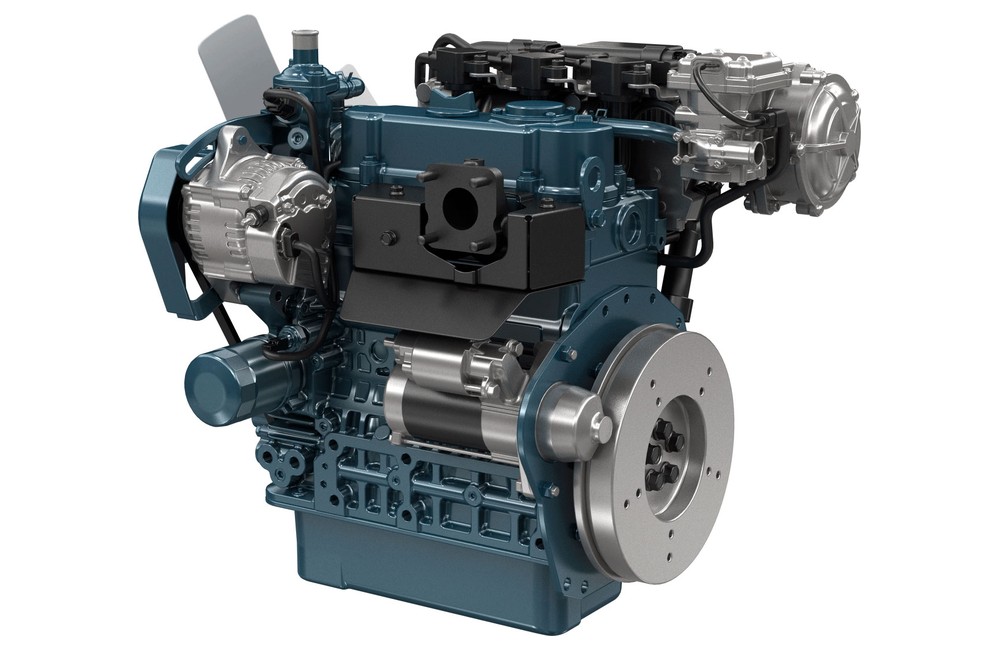

| Engine Model | WG972-M-G-E4 |
| Emission Regulation | EPA Tier 4/CARB Tier 4 + EU Stage V |
| Type | Vertical, water cooled 4-cycle spark ignited engine |
| Fuel | Gasoline |
| Cylinders | 3 |
Bore and Stroke mm (in) | 74.5 x 73.6 (2.93 x 2.90) |
Displacement L (cu.in.) | 0.962 (58.7) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalyst |

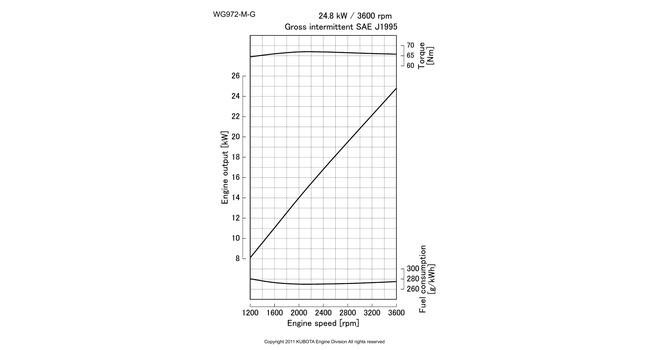

Rated Output / Speed*1
kW (HP) / rpm | 24.8 (33.3) / 3600 |
Maximum Torque*1
Nm (lb-ft) / rpm | 66.9 (49.3) / 2000 |

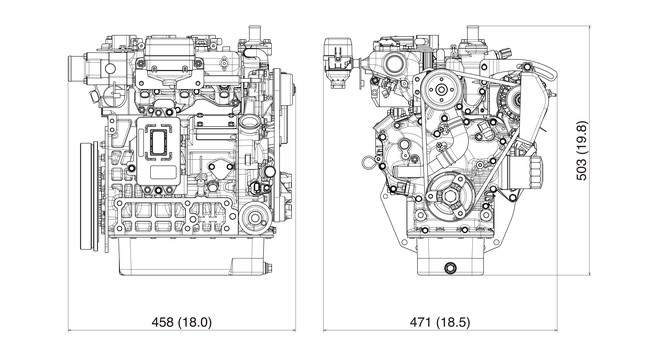

Length x Width x Height*2
mm (in) | 458 x 471 x 503 (18.0 x 18.5 x 19.8) |
Dry Weight*2
kg (lb) | 75.4 (166) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Propane is more than 30%, Butane is less than 70% recommended.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 49300 kJ/kg (11800 kcal/kg)
*1: SAE J1995 gross intermittent
*2: Exclude cooling fan, aftertreatment unit
