V2403-M-E3-BG - Altınboğa

DIESEL

V2403-M-E3-BG

Rated Power (kW): 26.5
Speed (rpm): 1800
Emission: EPA Tier 4, CARB Tier 4
Kubota BG Series

Features

Engine Model	V2403-M-E3-BG
Emission Regulation	EPA/CARB interim Tier 4 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	2.434 (148.5)
Aspiration	Naturally Aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	26.5 (35.5) / 1800
Continuous output / speed^*2 kW (HP) / rpm	22.1 (29.6) / 1800
Combustion System	Indirect Injection
Fuel System	In-line pump

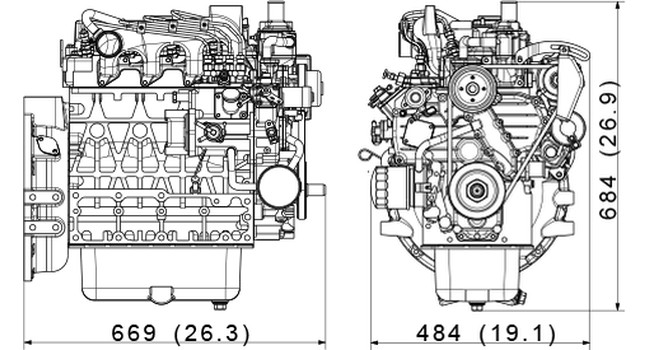

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	669 x 484 x 684 (26.3 x 19.1 x 26.9)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	204 (449)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
