DIESEL

OC95-E2

OC95-E2

Rated Power (kW): 7.0
Speed (rpm): 3600
Emission: EPA Tier 2, CARB Tier 2
Kubota OC Series

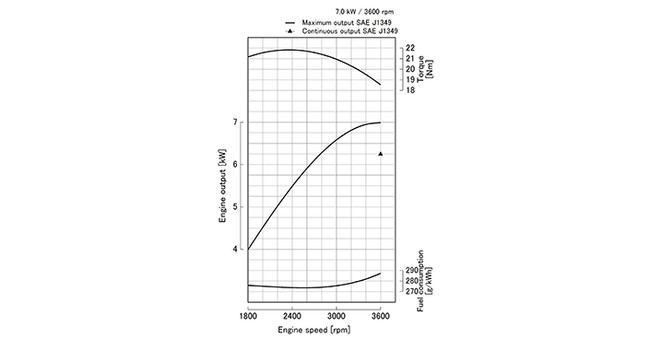

Performance Curves

OC95-E2

Features

Engine Model	OC95-E2
Emission Regulation	EPA/CARB Tier 2 level
Type	Vertical, liquid-cooled 4-cycle diesel engine
Cylinders	1
Bore and Stroke mm (in)	83.0 x 77.0 (3.27 x 3.03)
Displacement L (cu.in.)	0.416 (25.4)
Maximum output / speed^*1 Nm (lb-ft) / rpm	7.0 (9.4) / 3600
Continuous output / speed^*1 kW (HP) / rpm	6.25 (8.38) / 3600
Maximum Torque / Speed Nm (lb-ft) / rpm	21.6 (15.9) / 2300
Combustion System	Indirect Injection
Fuel tank capacity L (U.S. gal)	5.5 (1.5)
Lubricating oil capacity L (U.S. gal)	1.7 (0.45)
Starter capacity V - kW	12 - 1.2
Charging dynamo V - W	12 - 48 (L1 model: 12 - 170)
Length x Width x Height mm (in)	451 x 503 x 501 (17.8 x 19.8 x 19.7)
Dry Weight^*2 kg (lb)	56 (120)

Specifications are subject to change without notice.

Dry weight is according to Kubota's standard specification.

When specification varies, the weight will vary accordingly.

*1: SAE J1349 net intermittent
*2: Three Vortex Combustion System(TVCS)

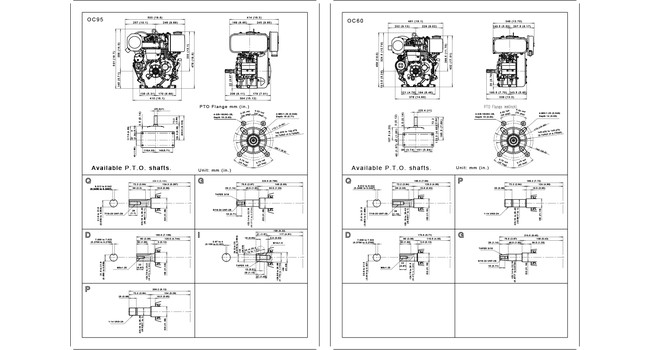

Dimensions

OC95-E2
