V3800-CR-TIEF4H

DIESEL
V3800-CR-TIEF4H
V3800-CR-TIEF4H
V3800-CR-TIEF4H
  • Rated Power (kW): 96.4
  • Speed (rpm): 2400
  • Emission: EPA Tier 4, CARB Tier 4, EU Stage V
  • Kubota V3 Series
Contact Us
Features
Engine Model V3800-CR-TIEF4H
Emission Regulation EPA/CARB Tier4 + EU Stage V
Type Vertical, water cooled 4-cycle diesel engine
Cylinders 4
Bore and Stroke
mm (in)		 100.0 x 120.0 (3.937 x 4.724)
Displacement
L (cu.in.)		 3.769 (230.0)
Aspiration Turbocharged + Turbo After Cooler
Aftertreatment DOC + DPF + SCR
Rated Output / Speed*1
kW (HP) / rpm		 96.4 (130.9) / 2400
Maximum Torque / Speed*1
Nm (lb-ft) / rpm		 446.6 (324.5) / 1800
Combustion System Direct injection
Fuel System Common rail system

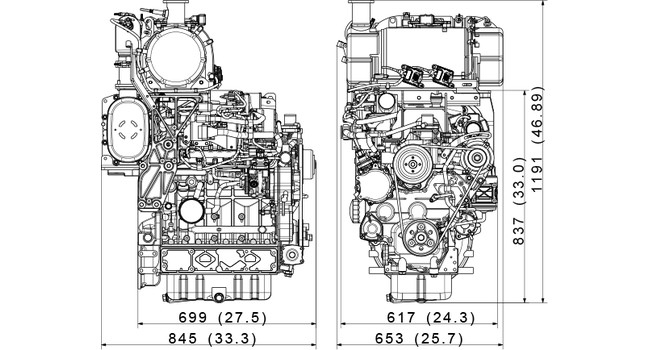

Length x Width x Height*2
(Without Aftertreatment Unit)
mm (in)		 699 x 617 x 837 (27.5 x 24.3 x 33.0)
Length x Width x Height*3
(With Aftertreatment Unit)
mm (in)		 845 x 653 x 1191 (33.3 x 25.7 x 46.89)
Dry Weight
kg (lb)		 400 (882)


Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

DPF: Diesel Particulate Filter

SCR: Selective Catalytic Reduction

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.



*1: SAE J1995 gross intermittent
*2: Exclude cooling fan, include aftertreatment unit on engine
*3: Exclude cooling fan, aftertreatment unit
