DIESEL

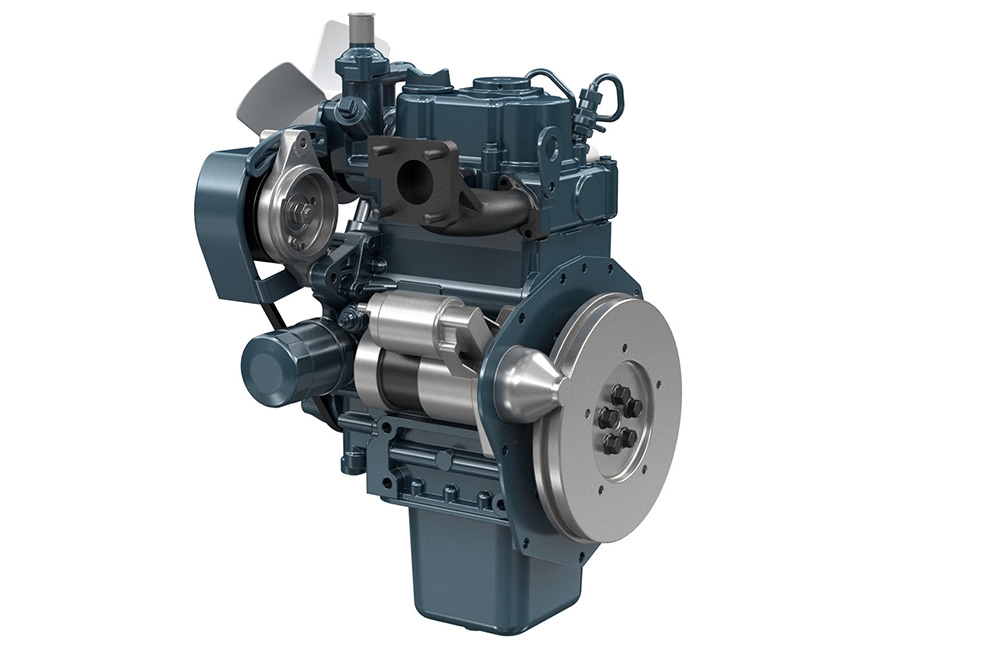

Z482-E3B

Z482-E3B

Rated Power (kW): 9.9
Speed (rpm): 3600
Emission: EPA Tier 4, CARB Tier 4
Kubota Super Mini Series

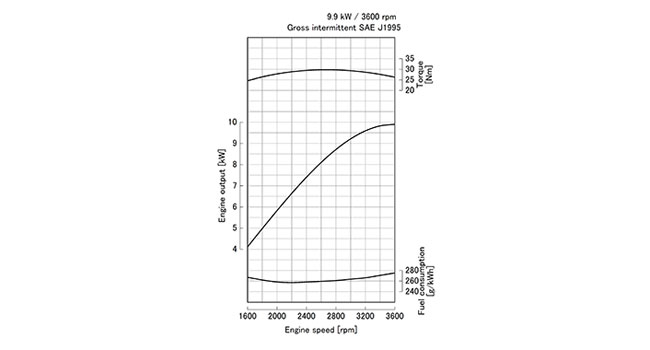

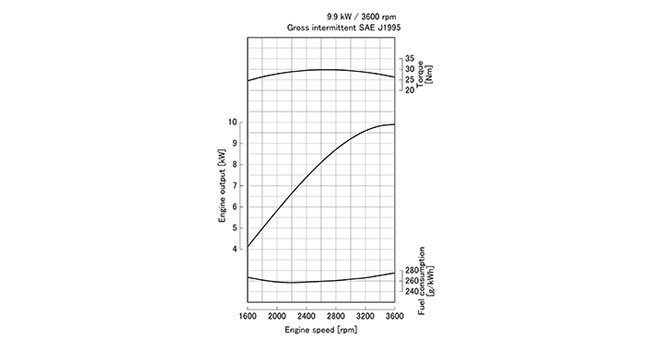

Performance Curves

Z482-E3B

Features

Engine Model	Z482-E3B
Emission Regulation	EPA/CARB Tier 4 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	2
Bore and Stroke mm (in)	67.0 x 68.0 (2.64 x 2.68)
Displacement L (cu.in)	0.479 (29.23)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	9.9 (13.3) / 3600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	29.7 (21.9) / 2600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	338 x 386 x 564 (13.3 x 15.2 x 22.2)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	53 (117)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent

*2: Exclude cooling fan and exclude aftertreatment unit

*3: Exclude cooling fan and include aftertreatment unit on engine

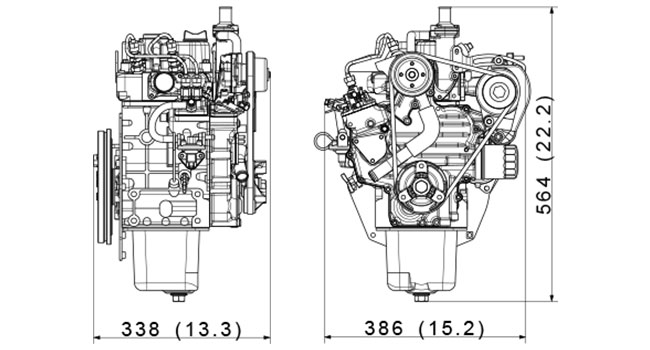

Dimensions

Z482-E3B
