DIESEL

V3600-E3B

Rated Power (kW): 49.8
Speed (rpm): 2600
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIA
Kubota V3 Series

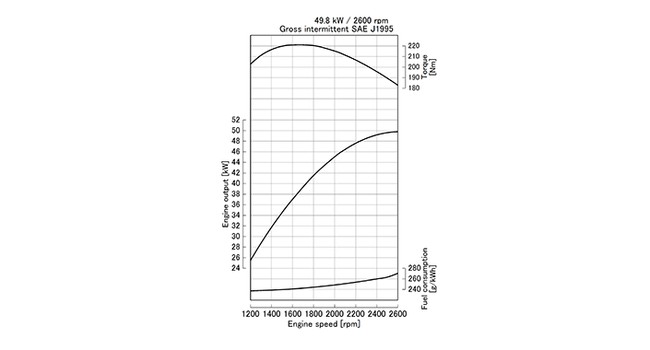

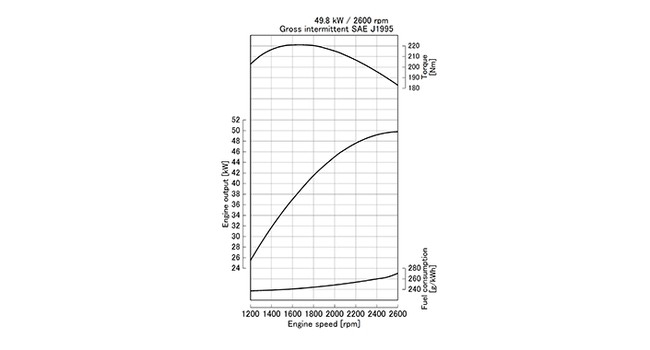

Performance Curves

Features

Engine Model	V3600-E3B
Emission Regulation	EPA/CARB interim Tier 4 + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	98.0 x 120.0 (3.86 x 4.724)
Displacement L (cu.in.)	3.620 (220.9)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	49.8 (66.8) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	221.0 (163.0) / 1600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 536 x 741 (27.5 x 21.1 x 29.2)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	252 (556)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

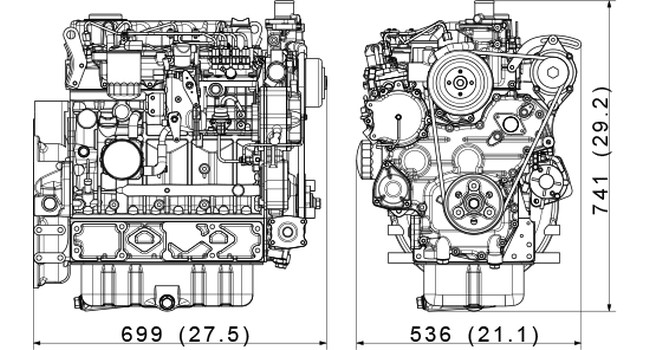

Dimensions
