DIESEL

D1803-CR-T-E5

D1803-CR-T-E5

Rated Power (kW): 37.0
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage V
Kubota 03 Series

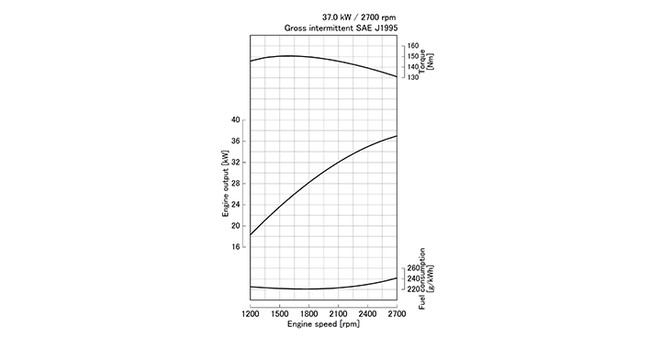

Performance Curves

D1803-CR-T-E5

Features

Engine Model	D1803-CR-T-E5
Emission Regulation	EPA/CARB Tier4 + EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	1.826 (111.4)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	37.0 (49.6) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	150.5 (111.0) / 1600
Combustion System	Direct Injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	551 x 536 x 742 (21.7 x 21.1 x 29.2)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	746 x 536 x 742 (29.4 x 21.1 x 29.2)
Dry Weight kg (lb)	196 (432)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit

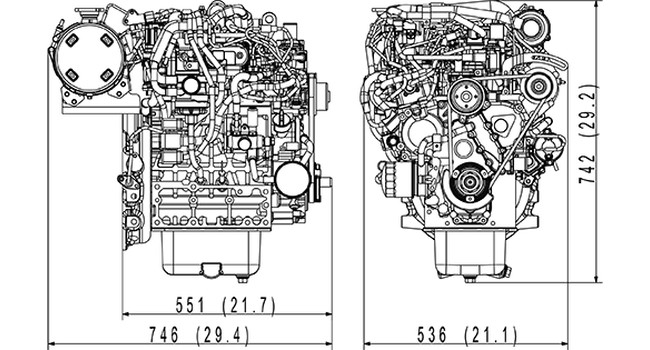

Dimensions

D1803-CR-T-E5
