| Engine Model | WG1903-L-LM |
| Emission Regulation | EPA Tier 2/CARB Tier 3 + EU Stage V |
| Type | Vertical, water cooled 4-cycle spark ignited engine |
| Fuel | LPG |
| Cylinders | 3 |
Bore and Stroke mm (in) | 88.0×102.4 (3.465×4.031) |
Displacement L (cu.in.) | 1.868 (114.0) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalyst |

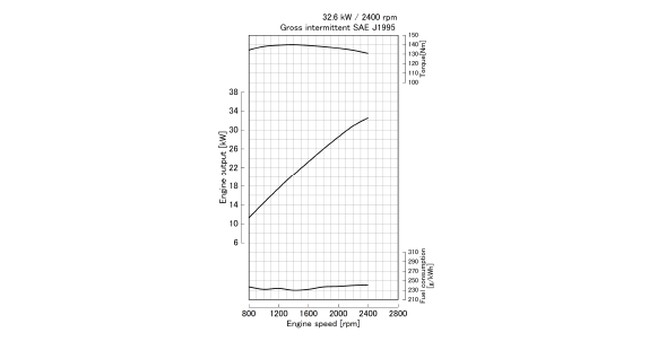

Rated Output / Speed*1
kW (HP) / rpm | 32.6 (43.7) / 2400 |
Maximum Torque / Speed Nm (lb-ft) / rpm | 140 (103) / 1400 |

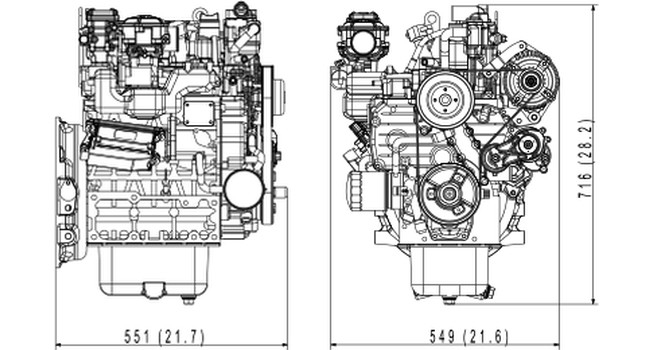

Length x Width x Height*1
mm (in) | 551 × 549 × 716 (21.7 × 21.6 × 28.2) |
Dry Weight*2
kg (lb) | 172 (380) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 9699 kcal/m3 (1090 BTU/ft3)
*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
