V3800DI-T-E2-BG2 - Altınboğa

DIESEL

V3800DI-T-E2-BG2

Rated Power (kW): 42.7
Speed (rpm): 1500
Emission: EU Stage II
Kubota BG Series

Features

Engine Model	V3800DI-T-E2-BG2
Emission Regulation	EU Stage II level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 x 120.0 (3.937 x 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	42.7 (57.2) / 1500
Continuous output / speed^*2 kW (HP) / rpm	38.8 (52.0) / 1500
Combustion System	Direct injection
Fuel System	In-line pump

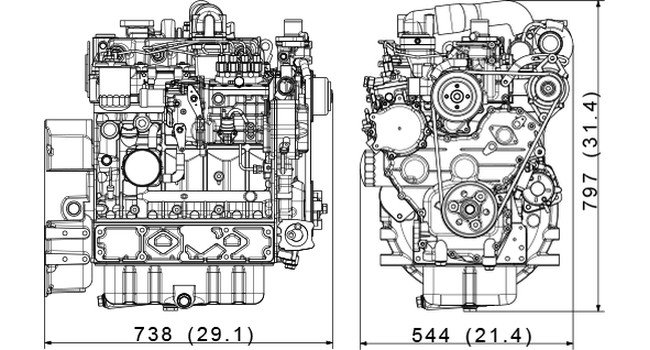

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	738 x 544 x 797 (29.1 x 21.4 x 31.4)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	290 (639)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
