D1803-CR-TI-E4-BG - Altınboğa

DIESEL

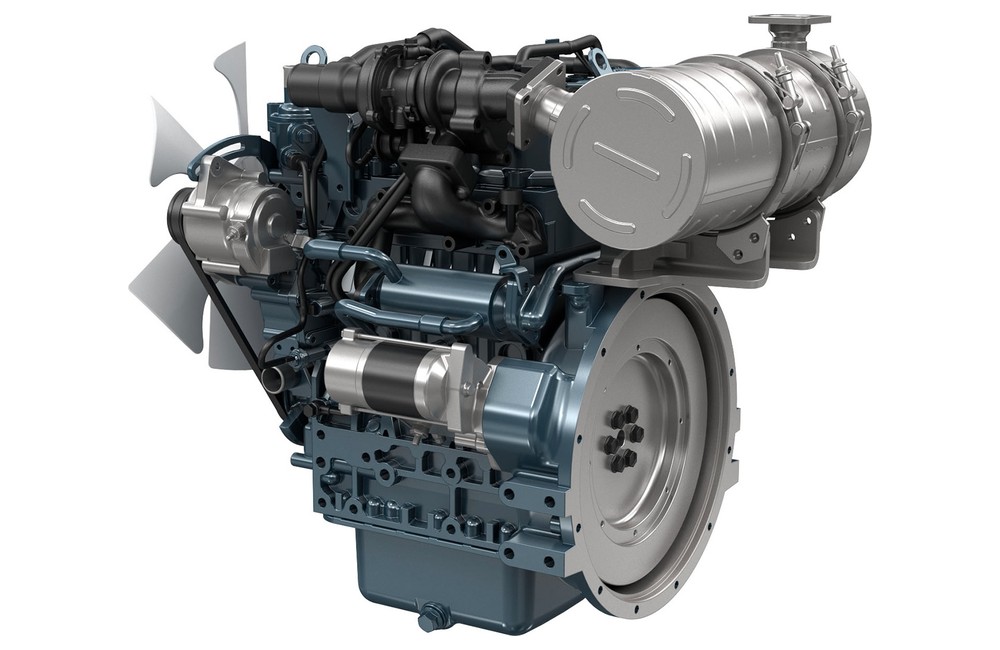

D1803-CR-TI-E4-BG

Rated Power (kW): 24.2
Speed (rpm): 1800
Emission: EPA Tier 4, CARB Tier 4
Kubota BG Series

Features

Engine Model	D1803-CR-TI-E4-BG
Emission Regulation	EPA/CARB Tier 4
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	1.826 (111.4)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC
Stand-by output / speed^*1 kW (HP) / rpm	24.2 (32.4) / 1800
Continuous output / speed^*2 kW (HP) / rpm	20.2 (27.1) / 1800
Combustion System	Direct injection
Fuel System	Common rail system

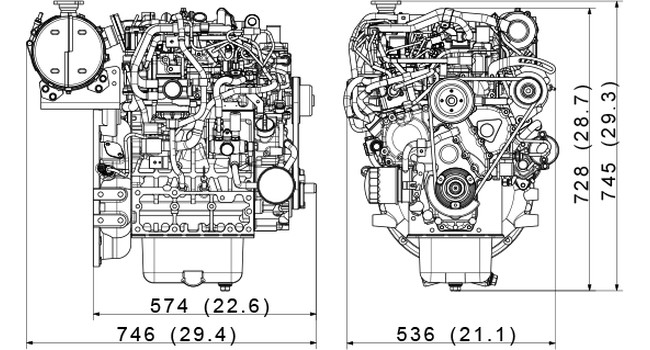

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	574 x 536 x 728 (22.6 x 21.1 x 28.7)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	746 x 536 x 745 (29.4 x 21.1 x 29.3)
Dry Weight kg (lb)	213 (469)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
