DIESEL

V3800-TIEF4

Rated Power (kW): 86.4
Speed (rpm): 2600
Emission: EPA Tier 4, CARB Tier 4
Kubota V3 Series

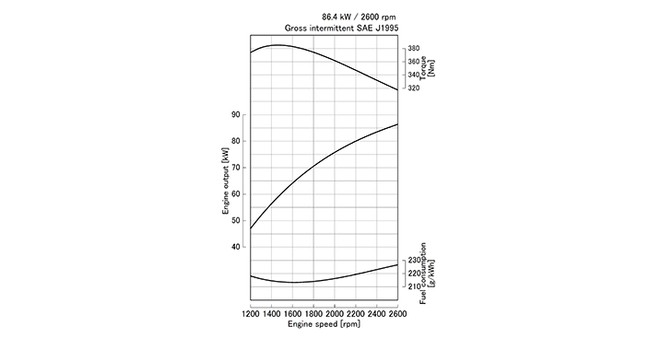

Performance Curves

Features

Engine Model	V3800-TIEF4
Emission Regulation	EPA/CARB Tier 4
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 x 120.0 (3.937 x 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC + DPF + SCR
Rated Output / Speed^*1 kW (HP) / rpm	86.4 (115.9) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	385.0 (284.0) / 1500
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 617 x 837 (27.5 x 24.3 x 33.0)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	845 x 653 x 1191 (33.3 x 25.7 x 46.89)
Dry Weight kg (lb)	400 (882)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

DPF: Diesel Particulate Filter

SCR: Selective Catalytic Reduction

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

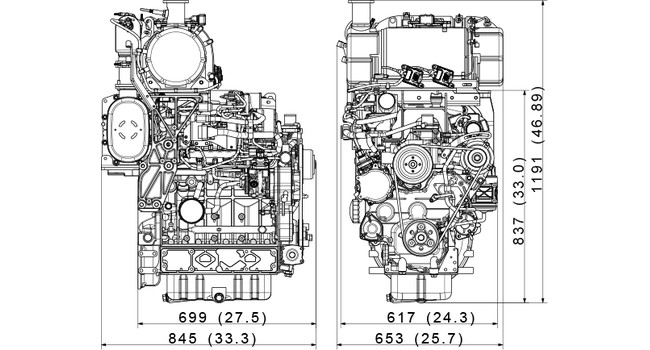

Dimensions
